2 CORE COPPER
Multi Core Wire (FR)

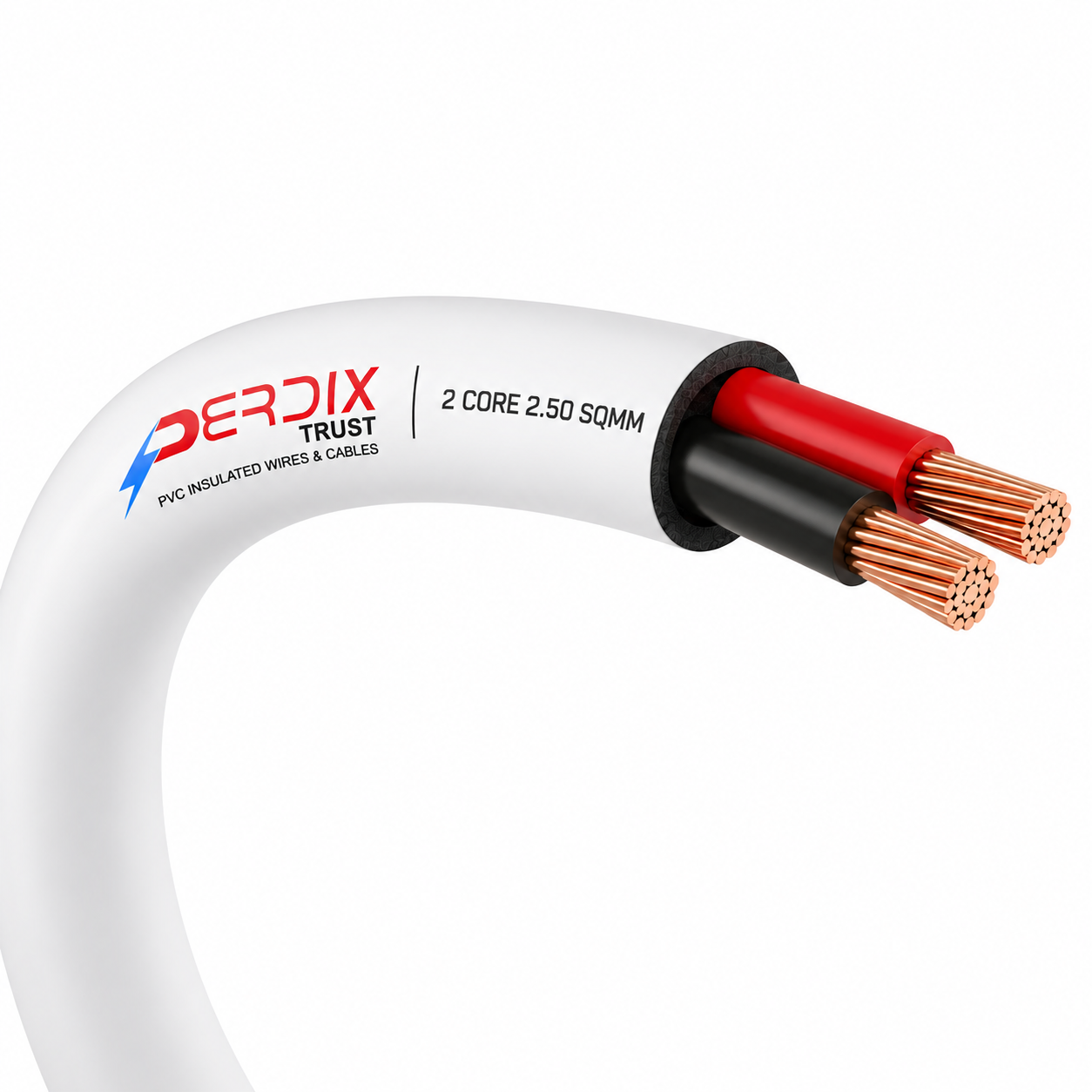

Perdix Trust 2 Core Copper Wire is a multi-core, unsheathed domestic and
industrial multipurpose wire designed for general electrical installations.
✓
Technical data index provides standard specifications for 2 core multi-core,
unsheathed (FR) copper wire.
unsheathed (FR) copper wire.
|
Conductor Area (sq.mm) |
Number & Nominal Size of Strands (mm) |
Current Carrying Capacity (Amps)* As Per Test In 220 Voltage 25 To 35 temp 120 foot Length |
2 Core Availability |
|---|---|---|---|
| 0.5mm | – | 4A | Available |
| 0.75mm | 11/030 | 7A | Available |
| 1.0mm | 14/030 | 11A | Available |
| 1.5mm | 22/030 | 14A | Available |
| 2.5mm | 36/030 | 20A | Available |
| 4.0mm | 56/030 | 26A | Available |
| 6.0mm | 84/030 | 31A | Available |
| 10.0mm | 144/030 | 42A | Not Available |
*Current Carrying Capacity (Amps) as per test in 220 voltage,
25 to 35°C temperature, 120 feet length.
25 to 35°C temperature, 120 feet length.
