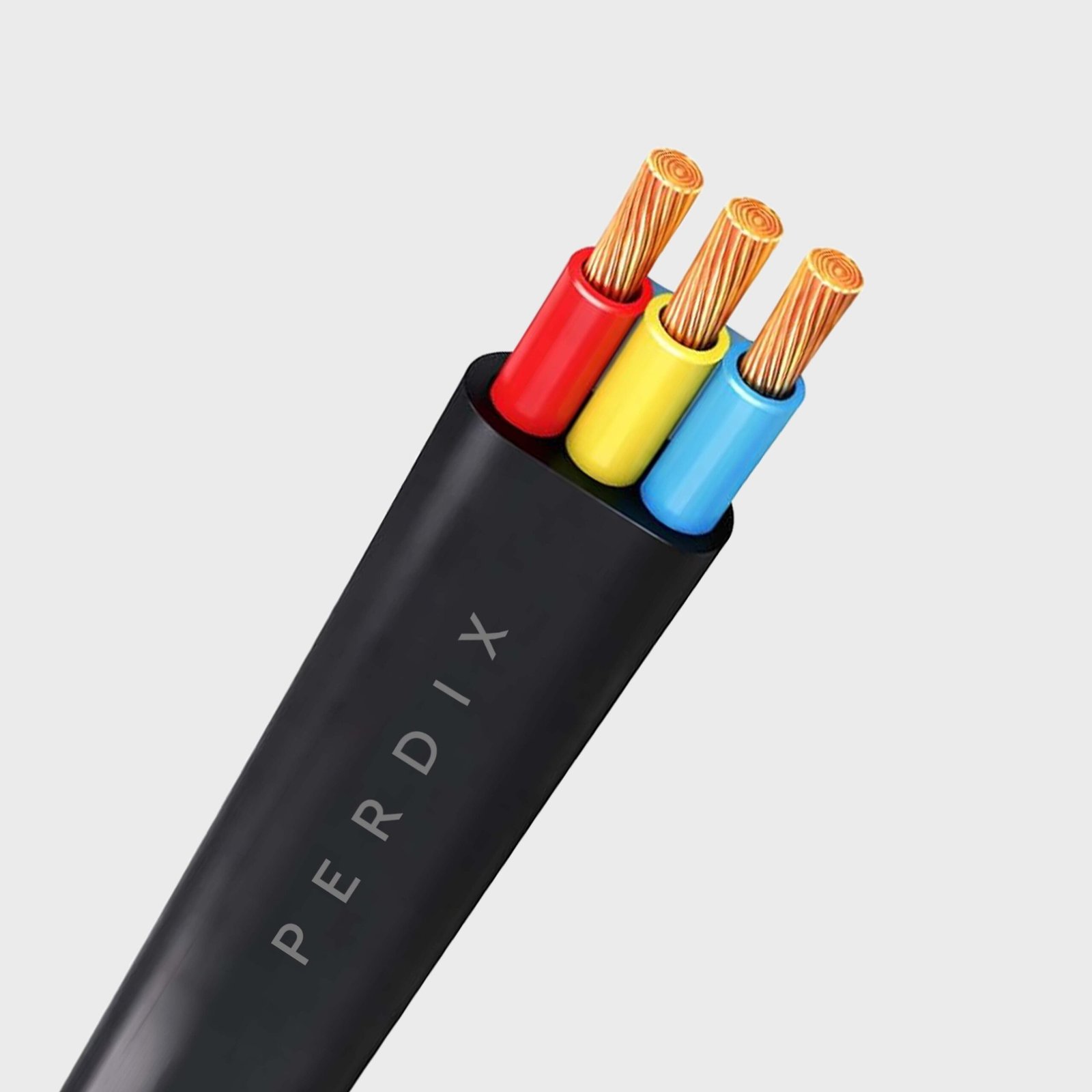

AGRICULTURE SUBMERSIBLE WIRES
The Perdix Trust Wires technical data index provides standard specifications for
Multi-core Agriculture Submersible Wires.
✓
Below is the standard cross-sectional area index reference table mapping
wire size to strand configuration and current carrying capacity for
general electrical installations.
wire size to strand configuration and current carrying capacity for
general electrical installations.
|
Conductor Area (sq.mm) |
Number & Nominal Size of Strands (mm) |
Current Carrying Capacity (Amps)* As Per Test In 220 Voltage 25 To 35 temp 120 foot Length |
Core Color Code |
|---|---|---|---|
| 1.5mm | 22/030 | 14A |
Red Yellow Blue |
| 2.5mm | 36/030 | 20A |
Red Yellow Blue |
| 4.0mm | 56/030 | 26A |
Red Yellow Blue |
| 6.0mm | 84/030 | 31A |
Red Yellow Blue |
| 10.0mm | 144/030 | 42A |
Red Yellow Blue |
*Current Carrying Capacity (Amps) as per test in 220 voltage,
25 to 35°C temperature, 120 feet length.
25 to 35°C temperature, 120 feet length.
Key Features
- High-purity copper conductor for efficient power delivery
- Waterproof and moisture-resistant insulation
- Excellent resistance to abrasion, chemicals, and corrosion
- Flexible design for easy installation
- Low power loss and superior conductivity
- Durable construction for long service life
- Reliable performance in submerged and wet conditions
Applications
- Submersible Water Pumps
- Borewell Installations
- Agricultural Irrigation Systems
- Residential Water Supply Systems
- Industrial Pumping Applications
- Water Treatment Facilities
Perdix Submersible Wire – Waterproof. Durable. Reliable Power Below the Surface.
