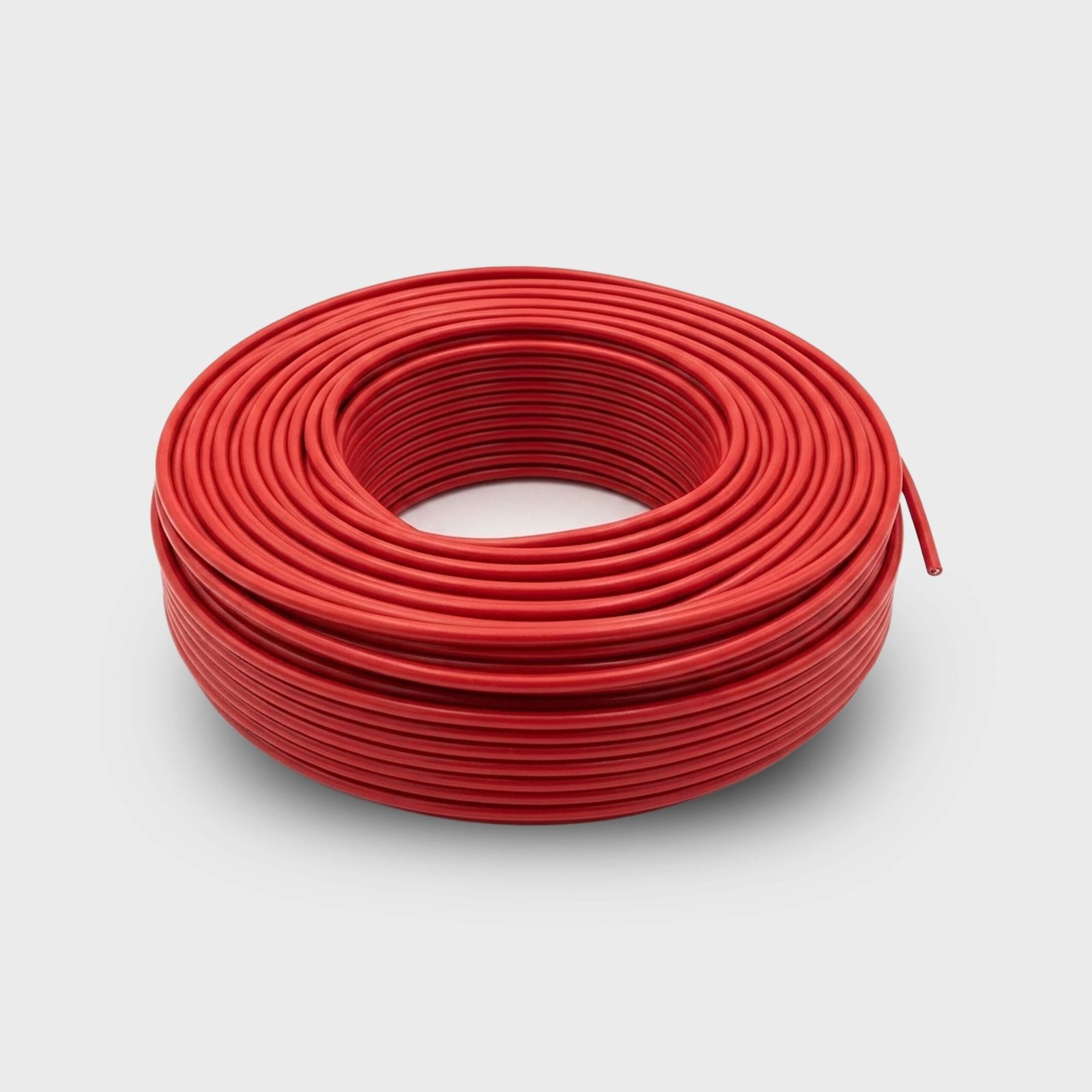

AGRICULTURE & INDUSTRY
MAIN CONNECTION WIRES
The Perdix Trust Wires technical data index provides standard specifications for
Agriculture & Industry Main Connection Wires.
wire size to strand configuration and current carrying capacity for
general electrical installations.
|
Conductor Area (sq.mm) |
Number & Nominal Size of Strands (mm) |
Current Carrying Capacity (Amps)* As Per Test In 220 Voltage 25 To 35 temp 120 foot Length |
Available Color |
|---|---|---|---|
| 7/22 028 | 7/028 | 20A |
|
| 7/20 036 | 7/036 | 26A |
|
| 7/18 044 | 7/044 | 31A |
|
| 7/16 064 | 7/064 | 42A |
|
25 to 35°C temperature, 120 feet length.
Key Features
- High-conductivity conductor for efficient power transmission
- Strong solid-core construction for enhanced durability
- Weather, moisture, and UV-resistant insulation
- Reliable performance in outdoor and rural environments
- Low power loss for improved energy efficiency
- Long service life with minimal maintenance
- Designed for heavy-duty agricultural applications
Applications
- Agricultural Pump Sets
- Irrigation Systems
- Farm Electrification
- Tube Wells & Bore Wells
- Rural Power Distribution
- Outdoor Electrical Installations
Perdix Solid Agriculture Wire – Tough. Efficient. Dependable Power for Every Field.
